About The Product
Purpose:
In a nutshell, our Pre-Greased Slip Joint’s are installed between a vertical wall (brick or concrete) and a horizontal concrete slab to create a low-friction barrier that allows the concrete slab to shrink and move without restraints from the blockwork/vertical concrete structure.
Typically, if there is friction created from concrete sitting directly on a vertical wall structure, then there is a risk of future damage to both the vertical wall and concrete slab.
Our pre-greased galvanized slip joints — also known as PG-SSJs – are produced in a high-capacity manufacturing facility with strict adherence to quality processes. Our PG-SSJs are nominated by engineers and qualified builders to adhere to structural design regulations for earthquakes as specified under AS 1170.4-2007.
Pre-Greased
Each slip joint is applied with a long-life premium grease between the sheets. The grease is suitable for high-pressure and harsh environments.
Packaging
All flat slip joints are efficiently rolled, taped and ready for use. The V-Cavity slip joints are bundled on a flat suitable lifting device for easy transportation Australia Wide. Custom packaging is also available.
Need Dowel sleeves?

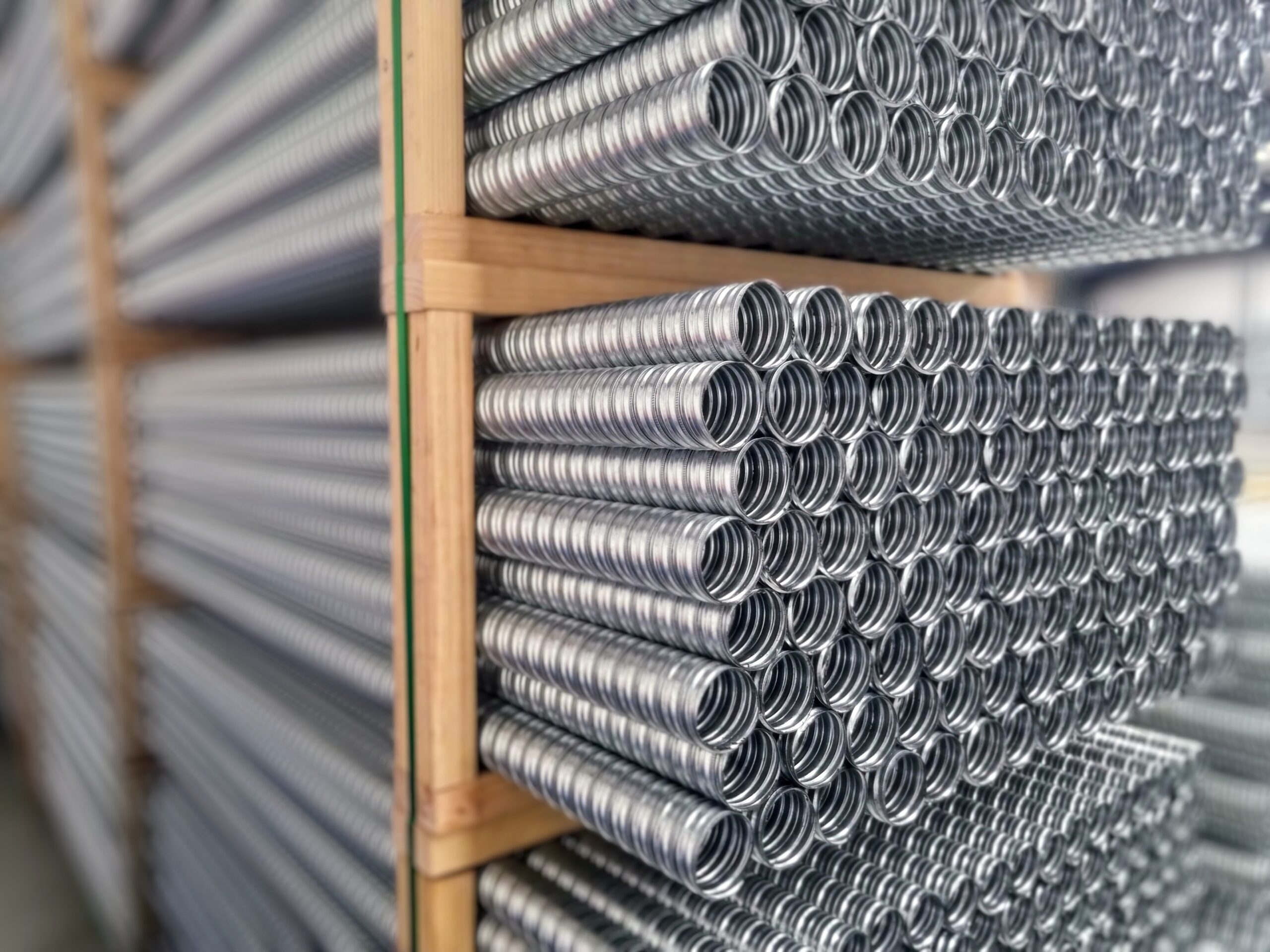

We also manufacture Steel Spiral Dowel Sleeves (Spiral Grout Tubes) to cover the dowel bars. 40mm-150mm diameters are available.
Talk to us to learn more.
Delivering Nationwide
With access to multiple freight services, we can securely package your order and deliver it across Australia promptly.
Available Widths:
Various widths are available to suit a variety of applications.
Our Flat PG-SSJ’s come in several widths: 110mm, 150mm, 230mm, 270mm and 300mm.
Standard 3-meter Lengths.
Also offering 45-meter, ungreased single-sheet rolls for those larger DIY runs.
Our V-Cavity PG-SSJ is suitable for double brick wall installations. Available in a width of 270mm. Standard 3-meter Lengths.
Product Specifications
Examples of Complex applications where our PG-SSJ’s have been used:
Contact Us
Please feel free to contact Sydney Slip Joints if you need more information. We deliver across Australia. No Order is too big or too small.
Pick up is available from our Western Sydney factory. 02 8350 7993
